Classic Series Pump Curves

Sidesloper™ Leachate Pump System

P2K-75 pump curves data


Model


Max. H.P.

Est.
Weight *

Max.
Pump Dia.

Discharge
Size

Est. Len. Pump
& Motor **

Carrier
Model

P2K75.3

2.0

40.0 lb

4"

2"

31.0"

A5

P2K75.5

3.0

70.0 lb

4"

2"

39.1"

C5

P2K75.8

5.0

80.0 lb

4"

2"

57.0"

E5



NOTES:

* Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.

** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.

  • GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.
  • Curves are based on stainless steel with Teflon® bearings and seals.
  • Sidesloper® carrier protected by U.S. Patent No. 7,685,946

Download in PDF format

Sidesloper™ Leachate Pump System

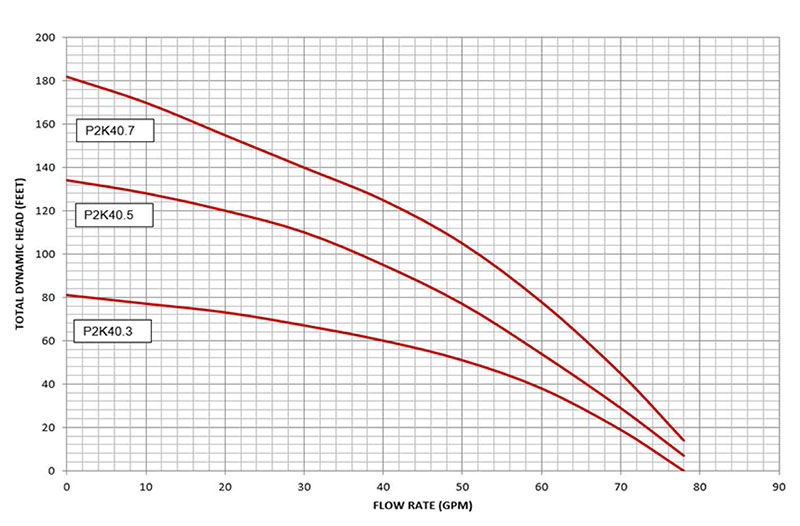

P2K-40 pump curves data


Model


Max. H.P.

Est.
Weight *

Max.
Pump Dia.

Discharge
Size

Est. Len. Pump
& Motor **

Carrier
Model

P2K40.3

1.0

31.0 lb

4"

2.0"

24.6"

B4/A5

P2K40.5

1.5

32.0 lb

4"

2.0"

31.2"

B4/A5

P2K40.7

2.0

37.0 lb

2.0"

34.5"

50.9"

B5



NOTES:

* Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.

** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.

  • GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.
  • Curves are based on stainless steel with Teflon® bearings and seals.
  • Sidesloper® carrier protected by U.S. Patent No. 7,685,946

Download in PDF format

Sidesloper™ Leachate Pump System

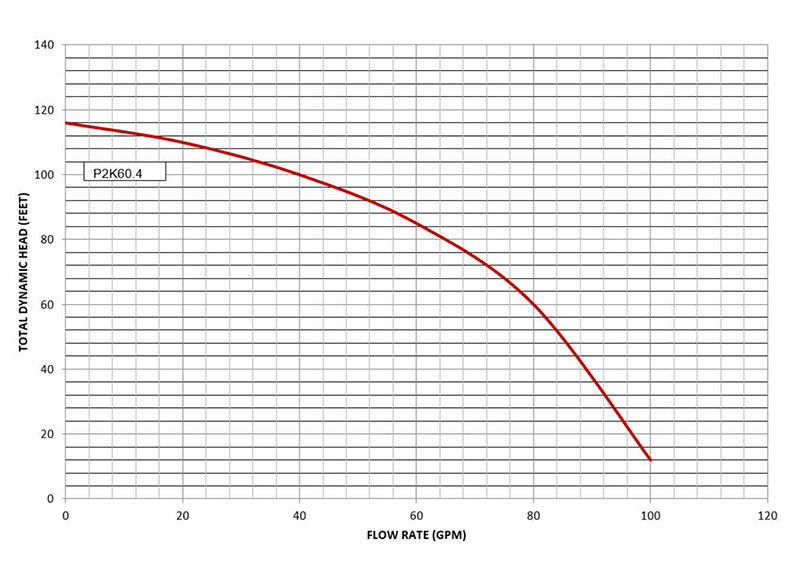

P2K-60 pump curves data


Model


Max. H.P.

Est.
Weight *

Max.
Pump Dia.

Discharge
Size

Est. Len. Pump
& Motor **

Carrier
Model

P2K60.4

2.0

40.0 lb

4"

2"

31.0"

A5



NOTES:

* Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.

** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.

  • GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.
  • Curves are based on stainless steel with Teflon® bearings and seals.
  • Sidesloper® carrier protected by U.S. Patent No. 7,685,946

Download in PDF format
