Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K45.3*
1.0
31.5 lb
4"
2"
27.1"
A5
P2K45.4*
1.5
36.5 lb
4"
2"
32.3"
A5/B5
P2K45.5*
2.0
53.4 lb
4"
2"
39.8"
C5/D5
P2K45.7*
3.0
64.8 lb
4"
2"
46.3"
C5/D5
P2K45.9*
5.0
78.4 lb
4"
2"
56.3"
E5/D6
P2K45.12*
6.0
82.2 lb
4"
2"
62.2"
E5/F5/D6/E6
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

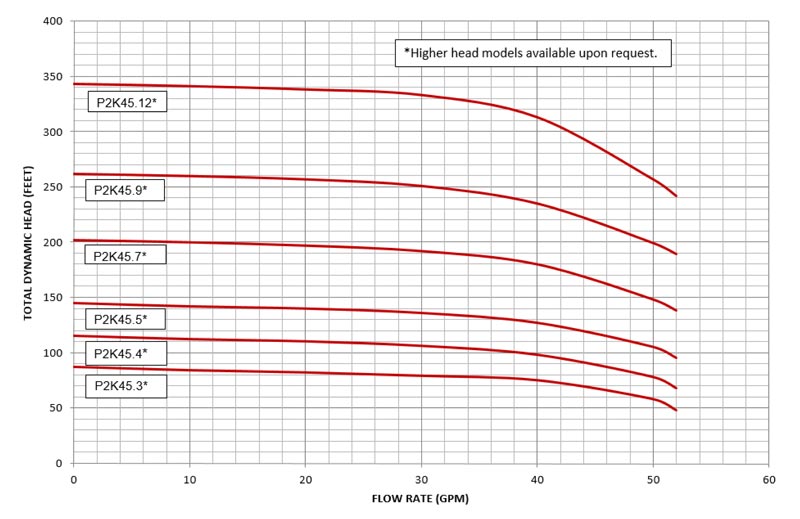

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper™ carrier protected by U.S. Patent No. 7,685,946
