Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K35.3*
0.75
29.9 lb
4"
1.5"
28.3"
B4/A5
P2K35.4*
1.0
32.8 lb
4"
1.5"
30.9"
B4/A5
P2K35.6*
1.5
39.1 lb
4"
1.5"
36.4"
B5
P2K35.8*
2.0
57.3 lb
4"
1.5"
44.7"
B5/C5
P2K35.11*
3.0
69.9 lb
4"
1.5"
53.7"
C5/D5
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

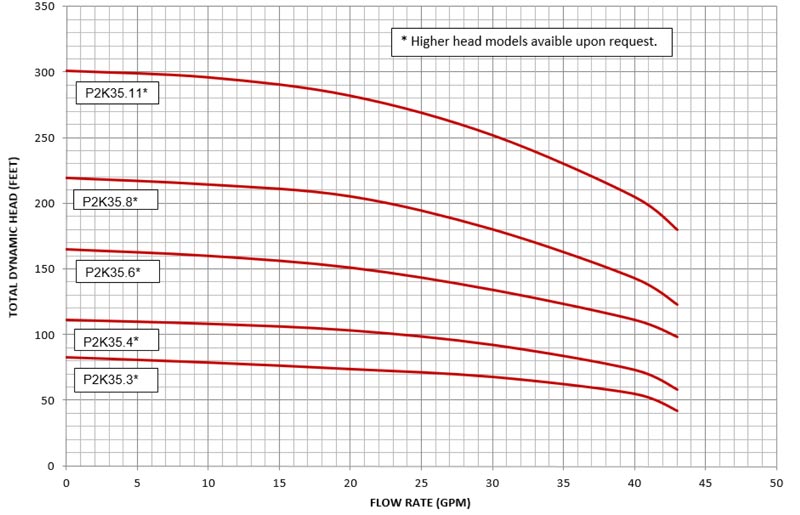

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper® carrier protected by U.S. Patent No. 7,685,946
