Sidesloper™ Leachate Pump System

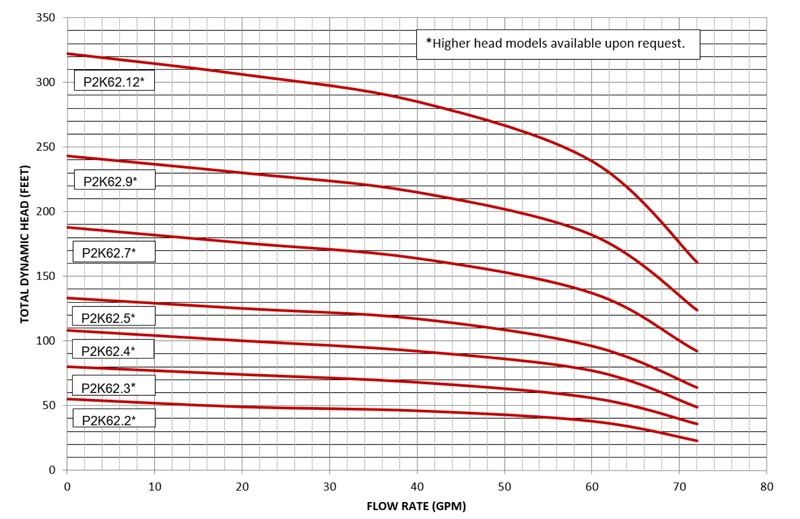

P2K-62 pump curves data


Model


Max. H.P.

Est.
Weight **

Max.
Pump Dia.

Discharge
Size

Est. Len. Pump
& Motor ***

Carrier
Model

P2K62.2*

0.75

29.7 lb

4"

2"

26.0"

A5

P2K62.3*

1.0

33.0 lb

4"

2"

30.0"

A5

P2K62.4*

1.5

38.5 lb

4"

2"

36.3"

B5

P2K62.5*

2.0

56.0 lb

4"

2"

44.8"

B5/C5

P2K62.7*

3.0

68.3 lb

4"

2"

53.3"

D5/E5

P2K62.9*

5.0

82.8 lb

4"

2"

65.2"

E5/F5/E6

P2K62.12*

5.0

88.1 lb

4"

2"

73.4"

G5/F6



NOTES:

* Preferred models

** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.

*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.

  • GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.
  • Curves are based on stainless steel with Teflon® bearings and seals.
  • Sidesloper™ carrier protected by U.S. Patent No. 7,685,946

Download in PDF format

Call today for sales, service, parts, or more information.

REQUEST A QUOTE   770-889-7114

515 Industrial Way
Cumming, GA 30040
770-889-7114 phone
770-889-2754 fax
info@gunnco.com email

Sidesloper

Sidesloper® pumps are designed for use in side slope riser applications or may be provided without wheels for use in vertical sump applications where cooling or lower inlet screens are required.

Sidesloper® pumps utilize the highest quality materials and components available for long and reliable service life.
