Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K85.1*
1.5
29.7 lb
6"
3"
26.0"
A6
P2K85.2*
3.0
55.8 lb
6"
3"
33.4"
A6/B6
P2K85.3*
5.0
67.5 lb
6"
3"
41.8"
C6
P2K85.4*
5.0
69.3 lb
6"
3"
50.3"
C6
P2K85.5*
7.5
73.8 lb
6"
3"
62.2"
C6/D6
P2K85.6*
7.5
86.5 lb
6"
3"
68.1"
D6
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

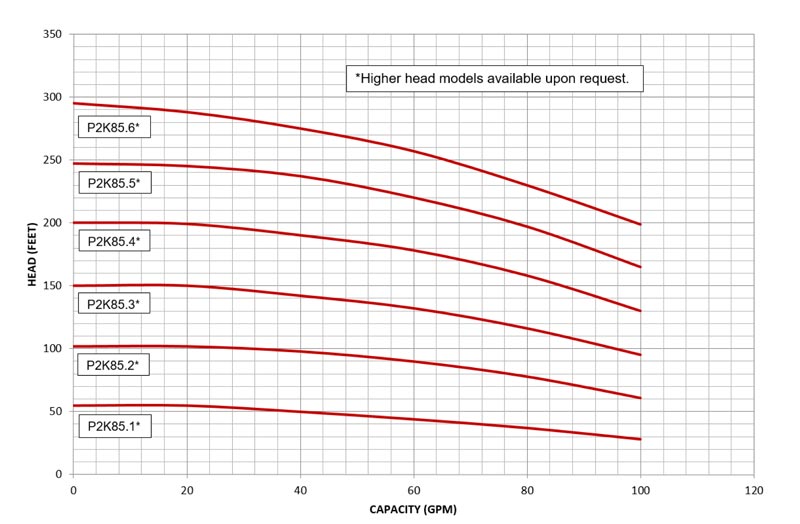

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper™ carrier protected by U.S. Patent No. 7,685,946
