Sidesloper® pre-engineered packages are designed to utilize a basic Sidesloper® control panel with either flat switches or a pressure transducer along with a Sidesloper® pump. The control panels are designed to provide automatic pump operation for both side slope and vertical wet well applications.

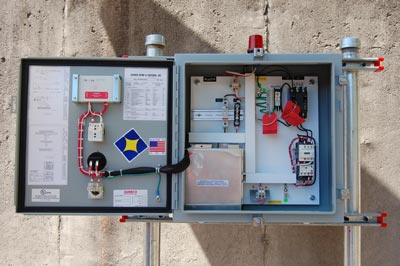

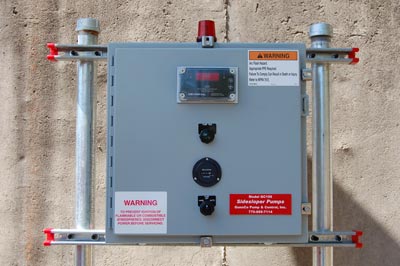

The Sidesloper® GC100 model utilizes a pressure transducer and a digital controller to provide reliable automatic operation and constant monitoring of sump level. Much like its bigger brother the GC101 it utilizes dependable independent components to allow for years of service and is easily serviceable.
- Reliable design
- Intrinsically safe
- Level display allows for level setting adjustments
- Weather tight 16-gauge Steel NEMA 4
- enclosure
- Optional NEMA 4X stainless steel enclosure available
- Optional dead front enclosure with interior door mounted controls and 180° opening door for easy operator access.
- Sturdy 30mm operator controls
- Operator flash safe
- Provides motor short circuit and overload protection
- Elapsed Time Meter (hour meter)
- Auxiliary start relay for extended level indicator life
- Control transformer provided on three phase models
- Spare fuses and bulbs provided
- Daylight LED high level alarm beacon
- UL rated

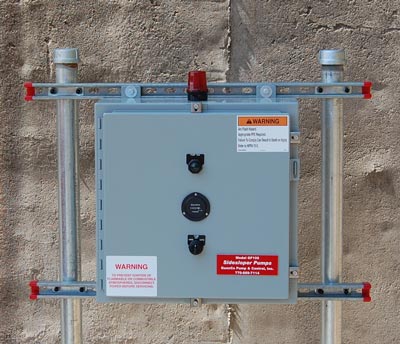

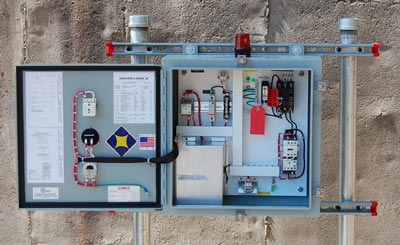

The Sidesloper® GF100 model utilizes a series of float switches to provide reliable automatic operation of a pump in a vertical wet well sump. Much like its bigger brother the GF101 it utilizes dependable independent components to allow for years of service and is easily serviceable.
- Simple Design
- Intrinsically safe
- Works with affordable common float switches
- Weather tight 16-gauge Steel NEMA 4 enclosure
- Optional NEMA 4X stainless steel enclosure available.
- Optional dead front enclosure with interior door mounted controls and 180° opening door for easy operator access.
- Sturdy 30mm operator controls
- Operator arc flash safe
- Provides motor short circuit and overload protection
- Elapsed Time Meter (hour meter)
- Auxiliary start relay for extended level indicator life
- Control transformer provided on three phase models
- Spare fuses and bulb provided
- Daylight LED high level alarm beacon
- UL rated
