Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight *
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor **
Carrier
Model
P2K75.3
2.0
40.0 lb
4"
2"
31.0"
A5
P2K75.5
3.0
70.0 lb
4"
2"
39.1"
C5
P2K75.8
5.0
80.0 lb
4"
2"
57.0"
E5
NOTES:
* Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

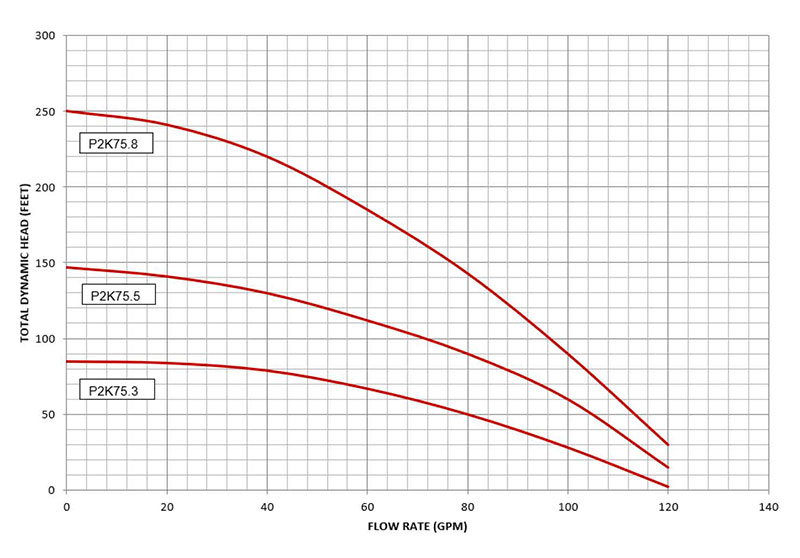

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper® carrier protected by U.S. Patent No. 7,685,946
