Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K16.4*
0.5
27.0 lb
4"
1.25"
19.8"
A4
P2K16.5
0.5
21.6 lb
4"
1.25"
19.8"
A4
P2K16.6
0.75
23.4 lb
4"
1.25"
23.4"
A4
P2K16.7*
0.75
28.0 lb
4"
1.25"
23.4"
A4
P2K16.8
0.75
23.4 lb
4"
1.25"
24.4"
A4
P2K16.9*
1.0
30.0 lb
4"
1.25"
26.1"
B4
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

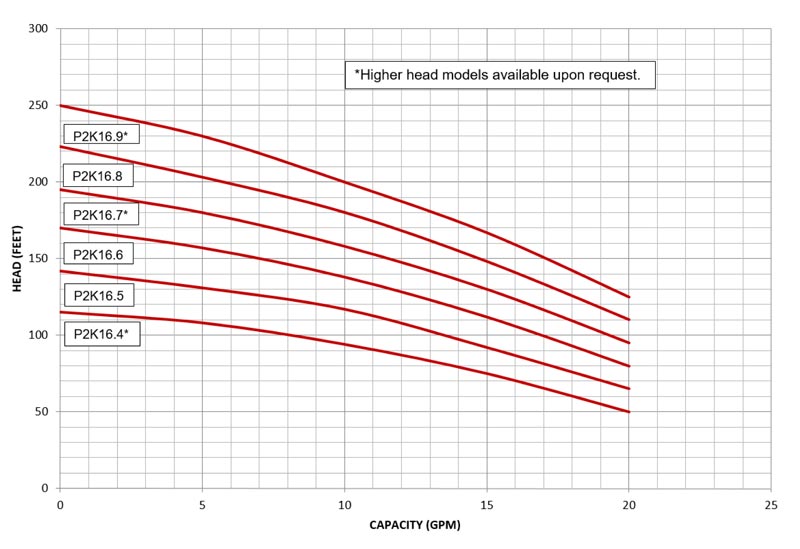

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper™ carrier protected by U.S. Patent No. 7,685,946
