Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K230.1B*
2.0
49.5 lb
6"
3"
34.7"
B6
P2K230.1*
5.0
49.5 lb
6"
3"
41.6"
C6
P2K230.2*
7.5
79.2 lb
6"
3"
46.0"
C6
P2K230.3*
10.0
126.0 lb
6"
3"
54.4"
D6
P2K230.4*
15.0
144.9 lb
6"
3"
55.9"
D6
P2K230.5*
20.0
161.1 lb
6"
3"
63.0"
E6
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

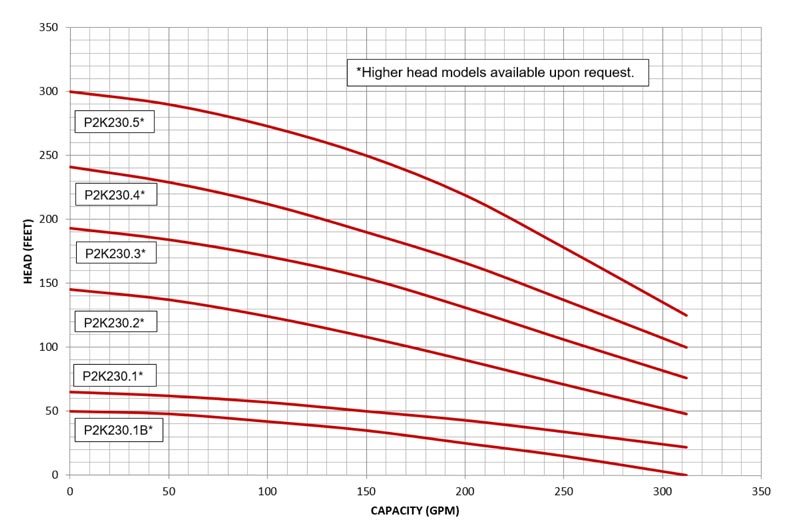

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper™ carrier protected by U.S. Patent No. 7,685,946
