Sidesloper™ Leachate Pump System
Model
Max. H.P.
Est.
Weight **
Max.
Pump Dia.
Discharge
Size
Est. Len. Pump
& Motor ***
Carrier
Model
P2K25.3*
0.5
25.0 lb
4"
1.5"
19.4"
A4
P2K25.4*
0.75
27.0 lb
4"
1.5"
20.8"
A4
P2K25.5
0.75
23.4 lb
4"
1.5"
21.8"
A4
P2K25.6*
1.0
29.0 lb
4"
1.5"
23.1"
A4
P2K25.7
1.0
25.2 lb
4"
1.5"
24.1"
A4
P2K25.8*
1.5
30.0 lb
4"
1.5"
26.3"
B4
NOTES:
* Preferred models
** Estimated pump with single phase motor. Add estimate of 0.5 lb per foot of cable and discharge.
*** Length is based on bare pump and single phase motor. Does not include carrier or any fittings.
- GunnCo pumps are provided with male cam lock discharge fitting unless otherwise specified. See Wheel Carrier Dimension sheets for additional information.

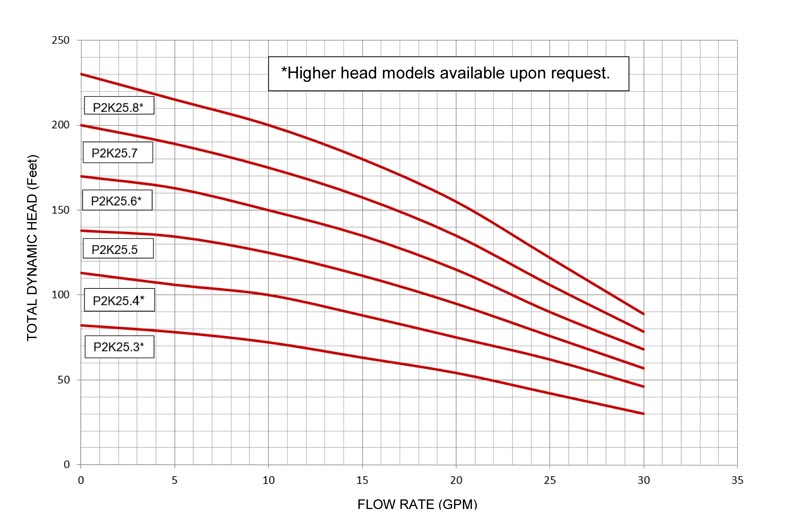

- Curves are based on stainless steel with Teflon® bearings and seals.
- Sidesloper™ carrier protected by U.S. Patent No. 7,685,946
