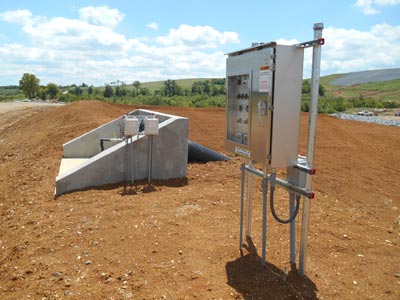

GC101 Control Panel

Sidesloper™ control panels are available as simplex, duplex, triplex, dual, and even custom combination panels such as alternating duplex, dual, and duplex/simplex combinations. Sidesloper™ control panels can use pressure transducers, floats, or bubblers for automatic operation. Our control panels use heavy duty independent control units for reliable operation and quick, easy service. Simple manual control panels are also available.

  • Simplex/Duplex/Triplex/Dual/Custom
  • Transducer/Float/Bubbler/Manual
  • Level Alarms
  • Solar Level Indication and Alarm
  • Wireless Signaling
  • SCADA Ready
  • Flow Meters
  • Load Sensing
  • Sequestered Arc Proof Panels

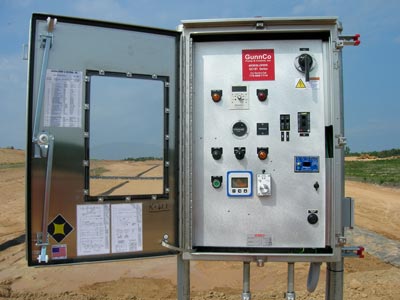

Sidesloper GC101

Sidesloper™ GC Series Control Panels utilize pressure sensing submersible transducers and provide precise level indication to 1/10th of an inch for side slope applications and most vertical applications. Sidesloper™ GC series control panels feature:

  • User friendly level indicating controller provides liquid level to 1/10th of an inch. Standard range is 0 to 138.6". Level settings are easily checked with a turn of a knob and are equally simple to change by turning a small adjustment screw on the face of the indicator-no punch and scroll as required by competitive manufacturers.
  • Pressure level sensor with surge suppressors for extended warranty against damage due to surge events. Intrinsically safe barriers with internal fuses are standard.
  • A large view window allows operator to monitor level, flow, totals and status without entering the enclosure.
  • A three-point latching mechanism with a heavy stainless steel handle with lock hasp is standard equipment on Sidesloper™ control panels. This latch allows quick and easy access and ensures proper closure and sealing of panel.
  • Interior door opens 180 degrees with mounted controls that include:
    • A main breaker disconnect safety switch
    • Heavy duty NEMA rated motor and control breaker
    • Heavy Duty 30 mm operation status indicating lights
    • H-O-A control switch for operator safety
    • Elapsed Run Time Meter
    • Motor Overload Reset Push Button
  • Standard system includes five surge protection devises:
    • Primary Surge Protection Device
    • Incoming voltage/surge monitor
    • Control circuit surge suppressor
    • Level signal surge suppressor
    • Level sensor surge suppressor
  • Optional flow meter provides simultaneous digital display of rate of flow and total gallons pumped up to 99,999,999 gallons.
  • Optional remote lock out feature allows the pump to be disabled via a pair of 14 AWG wires up to 5,000 feet away. Design allows standard panel to be easily upgraded to lock out option.
  • Optional wireless remote lockout option available.
  • Optional top alarm light or high visibility strobe light available.
  • All panels include spare bulbs and fuses standard for convenient correct field replacement.
  • Custom features provided upon request.

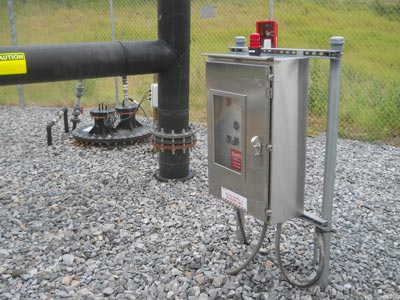

GF101

Sidesloper™ GF Series Control Panels utilize traditional float switches which provide reliable and lower cost service in vertical well applications. Sidesloper™ GF series control panels feature:

  • Heavy Duty NEMA 4X weather tight enclosures constructed of stainless steel to provide maximum service life. Sidesloper™ panels can also be provides in coated steel or non-metallic enclosures for cost savings.
  • A large view window allows operator to monitor level, flow, totals and status without entering the enclosure.
  • A three-point latching mechanism with a heavy stainless steel handle with lock hasp is standard equipment on Sidesloper™ control panels. This latch allows quick and easy access and ensures proper closure and sealing of panel.
  • Interior door opens 180 degrees with mounted controls that include:
    • A main breaker disconnect safety switch
    • Heavy duty NEMA rated motor and control breaker
    • Heavy Duty 30 mm operation status indicating lights
    • H-O-A control switch for operator safety
    • Elapsed Run Time Meter
    • Motor Overload Reset Push Button
  • Standard system includes five surge protection devises:
    • Primary Surge Protection Device
    • Incoming voltage/surge monitor
    • Control circuit surge suppressor
    • Level signal surge suppressor
    • Level sensor surge suppressor
  • Heavy Duty, self-weighted, mechanical or mercury floats are used for automatic control of pumps.
  • Optional flow meter provides simultaneous digital display of rate of flow and total gallons pumped up to 99,999,999 gallons.
  • Optional remote lock out feature allows the pump to be disabled via a pair of #14 wires up to 5,000 feet away. Design allows standard panel to be easily upgraded to lock out option.
  • Optional wireless remote lockout option available.
  • Optional top alarm light or high visibility strobe light available.
  • All panels include spare bulbs and fuses standard for convenient correct field replacement.
  • Custom features provided upon request.

bubbler

Sidesloper™ GB Series Control Panels utilize a bubbler level transmitter eliminating the need to use a submersible pressure transducer. The bubbler level transmitter is an automatic bubbler type liquid level measurement system (Bubbler level transmitter can be added to existing systems as well). It operates by forcing compressed air into a bubbler tube at a constant rate with its opening placed near the bottom of the liquid. The bubbler level transmitter measures the pressure required to force air through the tube and generates a 4-20 mA signal which is proportional to the depth of the liquid. This is ideal for applications where leachate temperatures exceed 140°F. Sidesloper™ GB series control panels feature:

  • Heavy Duty NEMA 4X weather tight enclosures constructed of stainless steel to provide maximum service life. Sidesloper™ panels can also be provides in coated steel or non-metallic enclosures for cost savings.
  • A large view window allows operator to monitor level, flow, totals and status without entering the enclosure.
  • A three-point latching mechanism with a heavy stainless steel handle with lock hasp is standard equipment on Sidesloper™ control panels. This latch allows quick and easy access and ensures proper closure and sealing of panel.
  • Interior door opens 180 degrees with mounted controls that include:
    • A main breaker disconnect safety switch
    • Heavy duty NEMA rated motor and control breaker
    • Heavy Duty 30 mm operation status indicating lights
    • H-O-A control switch for operator safety
    • Elapsed Run Time Meter
    • Motor Overload Reset Push Button
  • Standard system includes five surge protection devises:
    • Primary Surge Protection Device
    • Incoming voltage/surge monitor
    • Control circuit surge suppressor
    • Level signal surge suppressor
    • Level sensor surge suppressor
  • A dual compressor bubbler lever transmitter will be provided to generate 4-20 mA signal for level indication.
  • User friendly level indicating controller provides liquid level to 1/10th of an inch. Standard range is 0 to 138.6". Level settings are easily checked with a turn of a knob and are equally simple to change by turning a small adjustment screw on the face of the indicator-no punch and scroll as required by competitive manufacturers.
  • Optional flow meter provides simultaneous digital display of rate of flow and total gallons pumped up to 99,999,999 gallons. Optional remote lock out feature allows the pump to be disabled via a pair of #14 wires up to 5,000 feet away. Design allows standard panel to be easily upgraded to lock out option.
  • Optional wireless remote lockout option available.
  • Optional top alarm light or high visibility strobe light available.
  • All panels include spare bulbs and fuses standard for convenient correct field replacement.
  • Custom features provided upon request.

Sidesloper™ GM Series Control Panels utilize manual switch to operate pump or pumps. Typical applications include truck fill and areas with very little rain fall. Can be used for sideslope, vertical, and any other pump application.

  • Heavy Duty NEMA 4X weather tight enclosures constructed of stainless steel to provide maximum service life. Sidesloper™ panels can also be provides in coated steel or non-metallic enclosures for cost savings.
  • A large view window allows operator to monitor level, flow, totals and status without entering the enclosure.
  • A three-point latching mechanism with a heavy stainless steel handle with lock hasp is standard equipment on Sidesloper™ control panels. This latch allows quick and easy access and ensures proper closure and sealing of panel.
  • Interior door opens 180 degrees with mounted controls that include:
    • A main breaker disconnect safety switch
    • Heavy duty NEMA rated motor and control breaker
    • Heavy Duty 30 mm operation status indicating lights
    • H-O-A control switch for operator safety
    • Elapsed Run Time Meter
    • Motor Overload Reset Push Button
  • Standard system includes five surge protection devises:
    • Primary Surge Protection Device
    • Incoming voltage/surge monitor
    • Control circuit surge suppressor
    • Level signal surge suppressor
    • Level sensor surge suppressor
  • Optional pressure transducer or dual compressor bubbler lever transmitter will be provided to generate 4-20 mA signal for level indication.
  • Optional digital level indicating display (requires level transducer or level transmitter).
  • Optional flow meter provides simultaneous digital display of rate of flow and total gallons pumped up to 99,999,999 gallons.
  • Optional remote lock out feature allows the pump to be disabled via a pair of #14 wires up to 5,000 feet away. Design allows standard panel to be easily upgraded to lock out option.
  • Optional wireless remote lockout option available.
  • Optional top alarm light or high visibility strobe light available.
  • All panels include spare bulbs and fuses standard for convenient correct field replacement.
  • Custom features provided upon request.
Sidesloper

Sidesloper™ pumps are designed for use in side slope riser applications or may be provided without wheels for use in vertical sump applications where cooling or lower inlet screens are required.

Sidesloper™ pumps utilize the highest quality materials and components available for long and reliable service life.
